3D Scan

The COMEP group has a wide range of 3D scanning that can cover all types of requests :

Our equipments is able to reach resolutions as small as  0.2 mm (0.015mm with extension) and cover a range up to 110 m.

QUALITY AND DIMENSIONAL INDUSTRIAL CONTROL

 3D scanning solutions allow the verification of existing assets and their temporal stability, combining efficiency and precision. COMEP has equipped itself with scanners capable of distant scanning with high precision (Range 110 mm – LIDAR technology).

WIth this control means it is possible to analyze the deformation of industrial equipment therefore helping maintenance efforts.

Example of metrological achievements :

  • Retaining wall resistance (flatness)
  • Deformation of vertical storage tank (cylindricity))
  • Holding tanks at operating pressure
  • Wear of refractory in hopper

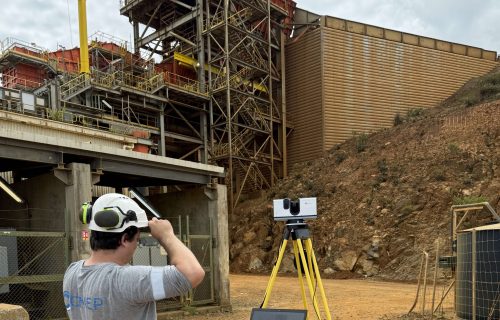

IMG_9677 2

REVERSE ENGINEERING - REVERSE DESIGN:

1 - maillage scan 3D

This precise technique enables digitalization of objects or structure, and transpose it into the form of a 2D or 3D plan usable to many areas of activities (industrial or building).

If your activity requires equipment construction plans (which your supplier cannot send you) COMEP can offer you a range of solutions, ranging from 3D scanning alone (points cloud), creation of 3D mesh, CAO plan alone, and reverse engineering with functional quotation (good for manufacturing).

3D BUILDING SCANNING - DIGITAL COPY

 Through capabilities of our scanners, COMEP can make a perfect digital copy of your existing or finished equipment.

COMEP offers to carry out a diagnosis of your equipment and to digitalize it in 3D with high precision, in order to provide you with its accurate design.

The creation of digital copies has become a major innovation, and thanks to our cutting-edge equipment, we can support you in this endeavour.

EXAMPLES

Example of fan casing

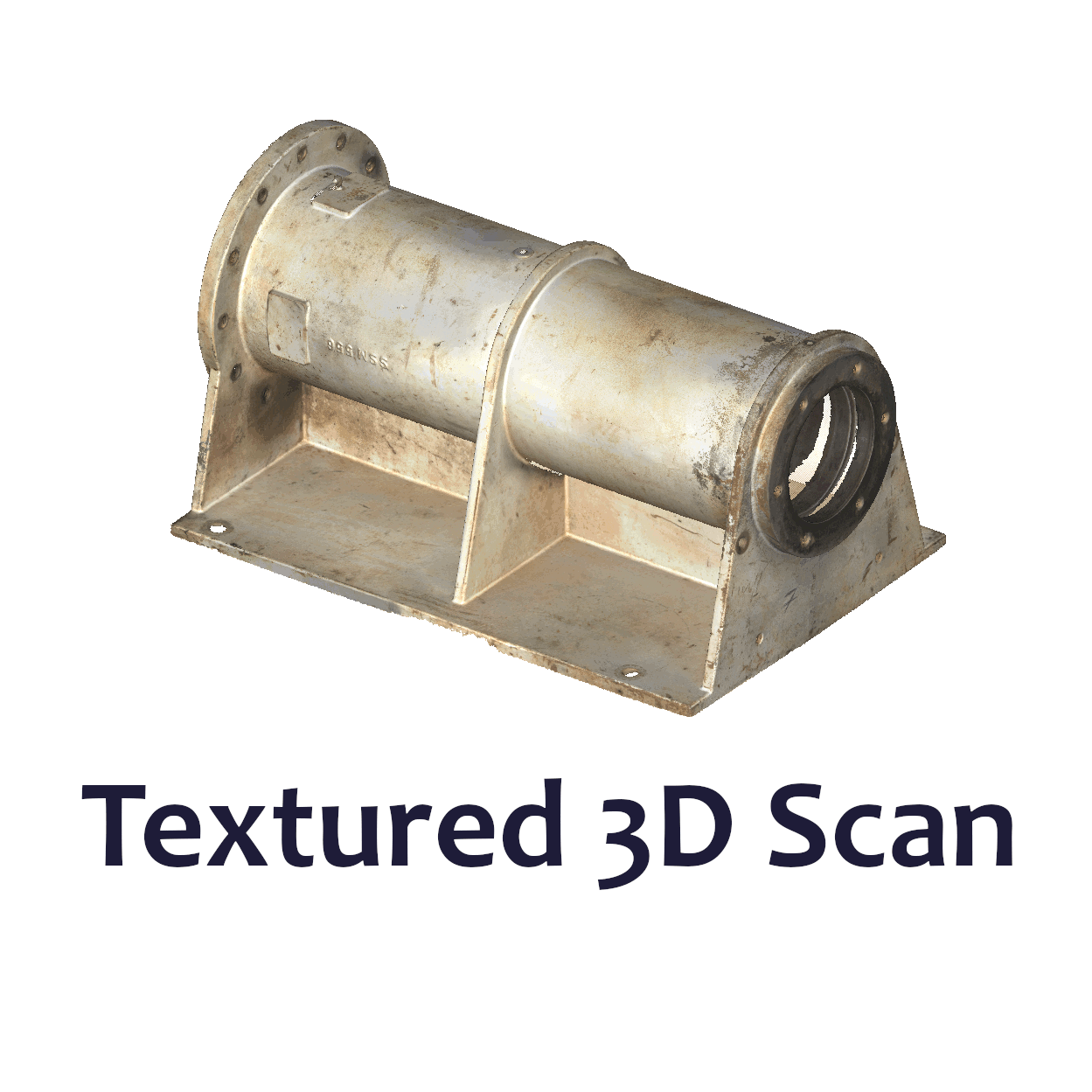

Existing 3D scan

Conception

Combination of the 3D model and the conception

Comparison

Example of retaining wall

Real wall

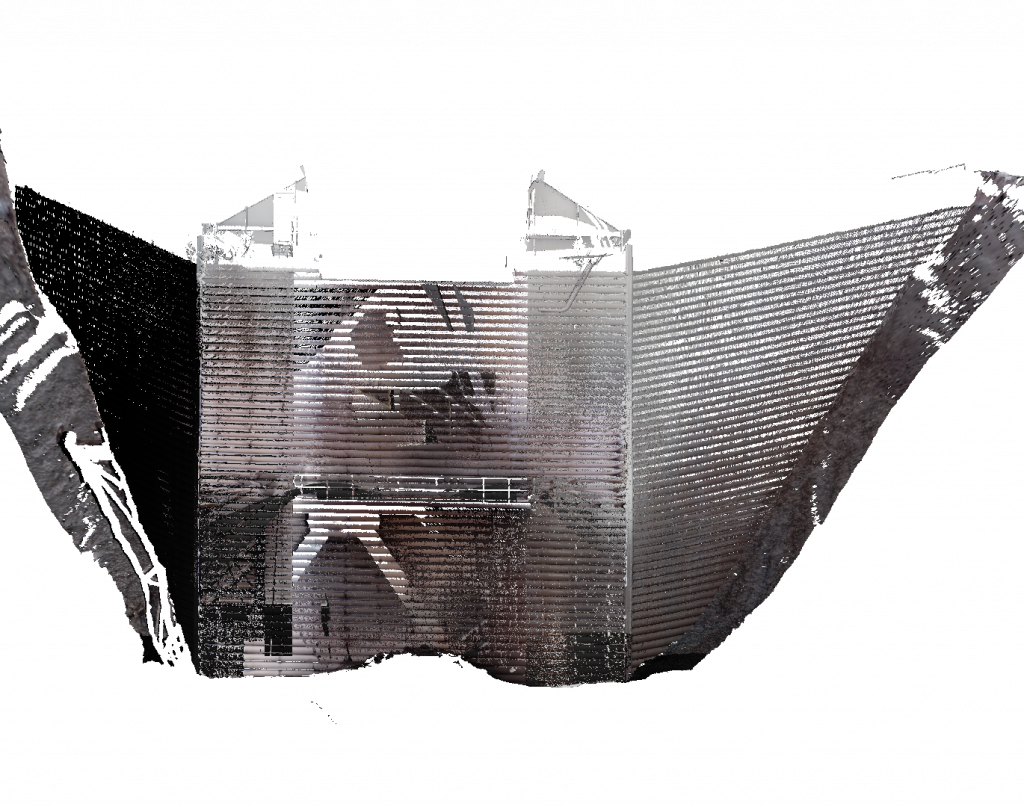

Untreated scan

Scan treatment

Deformation detection

Example of support bearing

Reverse engineering project for scaffolding base with Artec EVA
